V-TAC · SUN-5K-SG03LP1-EU
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

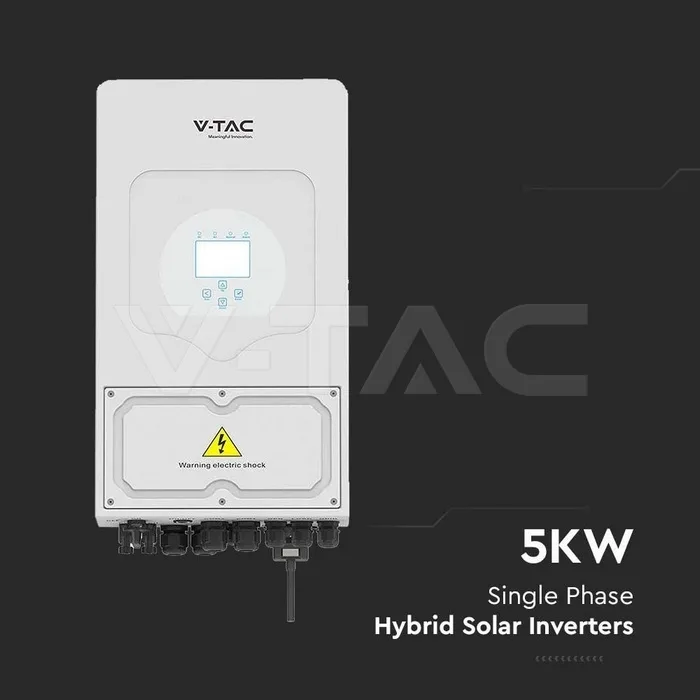

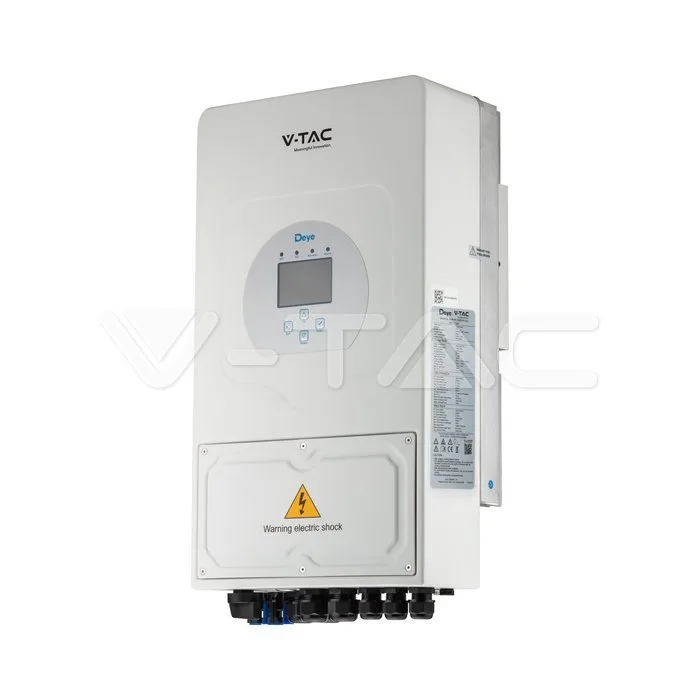

5kW Single Phase Hybrid Solar Inverter

5kW Single Phase Hybrid Solar Inverter with IP65 protection and an operating range of -40~60°C, >45°C derating. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

desde€819IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€819Card · PayPal · Klarna · Apple Pay
Pro€778Card · PayPal · Klarna · Apple Pay
Master€737Card · PayPal · Klarna · Apple Pay
Solicitar precio y disponibilidad
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 3
Declaration of ConformityEMC LicenseLVD License

Especificaciones técnicas

ELECTRICAL DATA13 items
Max. DC Input Power6500W
Rated AC Output and UPS Power5000W
Max. AC Output Power5500W
PV Input Current13+13A
AC Output Rated Current25/23.9A
Max. AC Current22.7/21.7
Rated PV Input Voltage370 (125~500)
Start-up Voltage125V
MPPT Voltage Range150-425V
Full Load DC Voltage Range300-425V
Frequency50/60Hz
Power Factor0.8 leading to 0.8 lagging
PhaseSingle Phase
MECHANICAL & BUILD2 items
Max. PV ISC17+17A
Max. Continuous AC Passthrough35A
PHYSICAL DATA3 items
Working conditions-40~60°C, >45°C derating

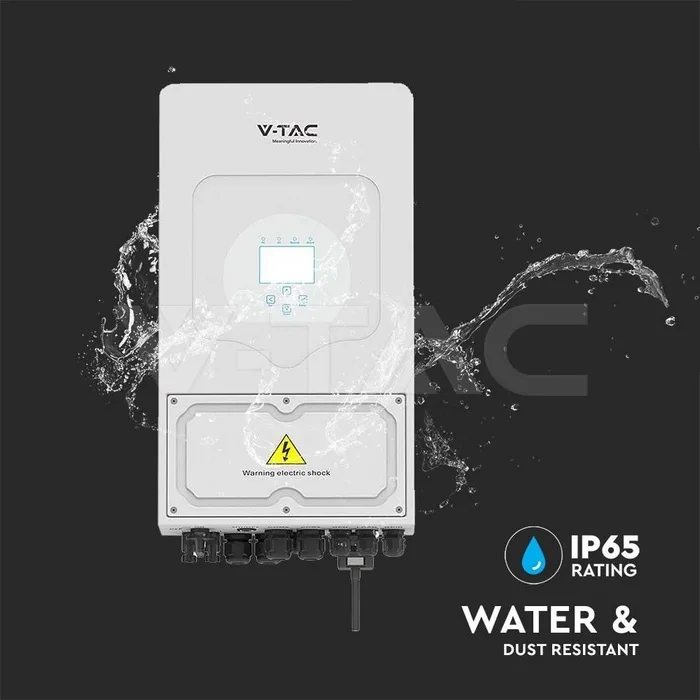

IP RatingIP65

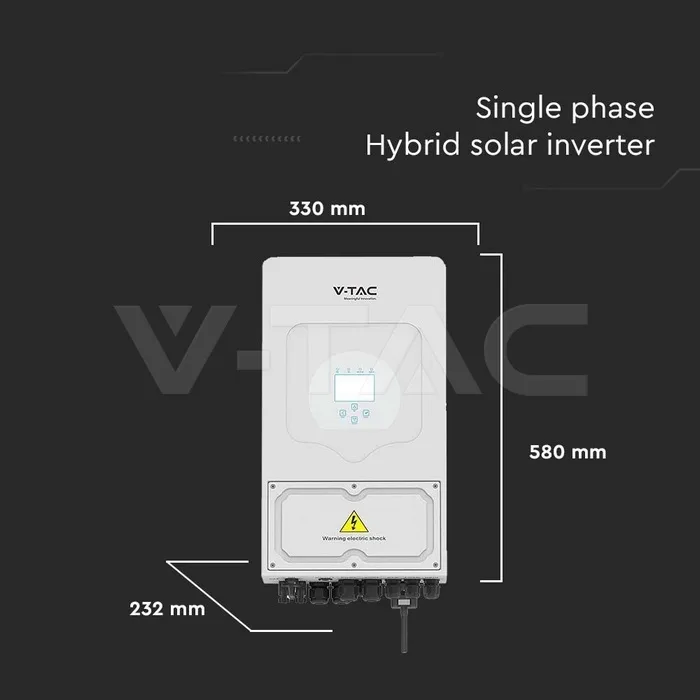

Size330W x 580H x 232D
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight24 kg
PRODUCT DATA3 items
Order code11547
Product codeSUN-5K-SG03LP1-EU
BrandDeye
