10kW On-Grid Solar Inverter LCD Display DC Switch — view 1

V-TAC · VT-6610305

● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

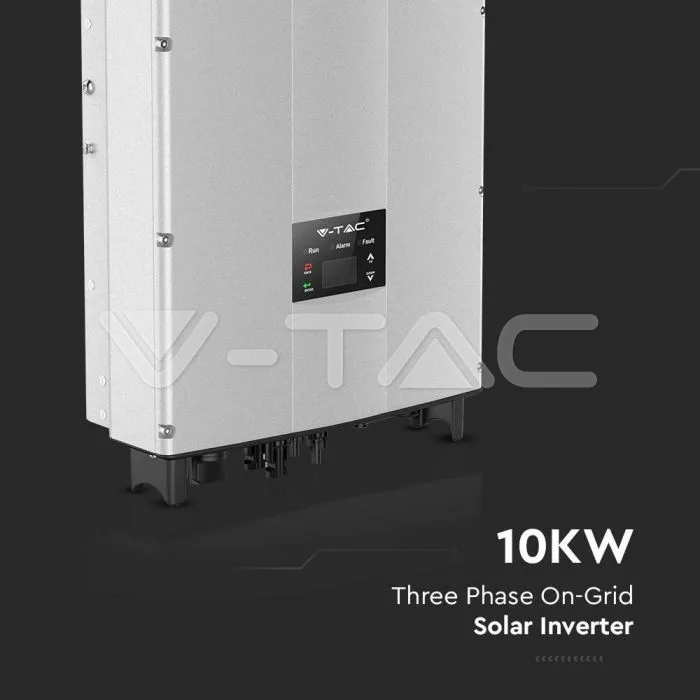

10kW On-Grid Solar Inverter LCD Display DC Switch

Name: 10kW On-Grid Solar Inverter LCD Display DC Switch
Brand: V-TAC
SKU: 11373

10kW On-Grid Solar Inverter LCD Display DC Switch with three phase, IP65 protection and an operating range of -25°C to +60°C. 10 years; certification on file: LVD License, Declaration of Conformity and EMC License.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

Solicitar precio y disponibilidad

GARANTÍA DEL FABRICANTE

10 years

Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.

CERTIFICACIÓN · 3

LVD LicenseDeclaration of ConformityEMC License

Especificaciones técnicas

ELECTRICAL DATA9 items

Max. DC Current per MPPT x Quantity of MPPT12.5x2 Max. Output Current: 14A

Max. Input Power11000W

Rated AC Power10000W

Start Voltage/Min. Operating (DC)220/180V

MPPT Range (DC)200-800/610V

Nominal output voltage (AC)230/400V

Frequency50Hz / 60Hz

Power Factor≥0.99 (Rated Power)

PhaseThree Phase

MECHANICAL & BUILD1 item

Max. Input (DC)1000V

PHYSICAL DATA3 items

Working conditions-25°C to +60°C

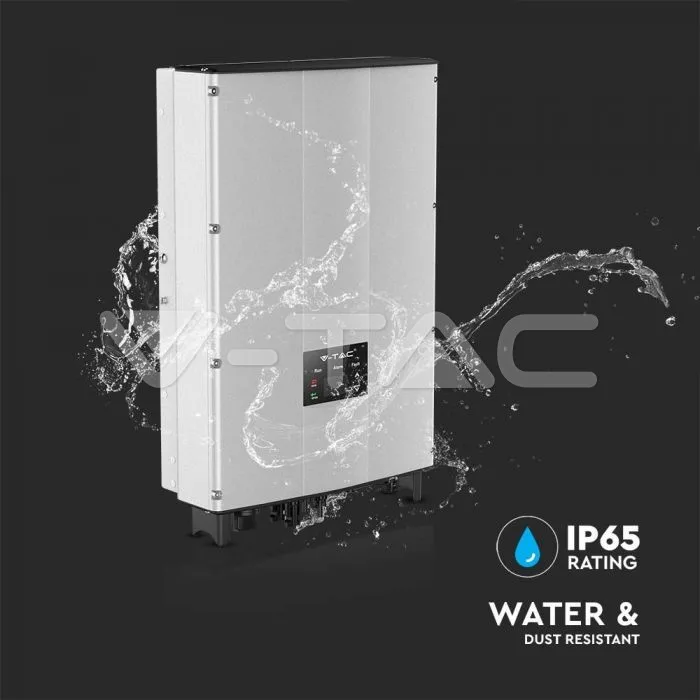

IP RatingIP65

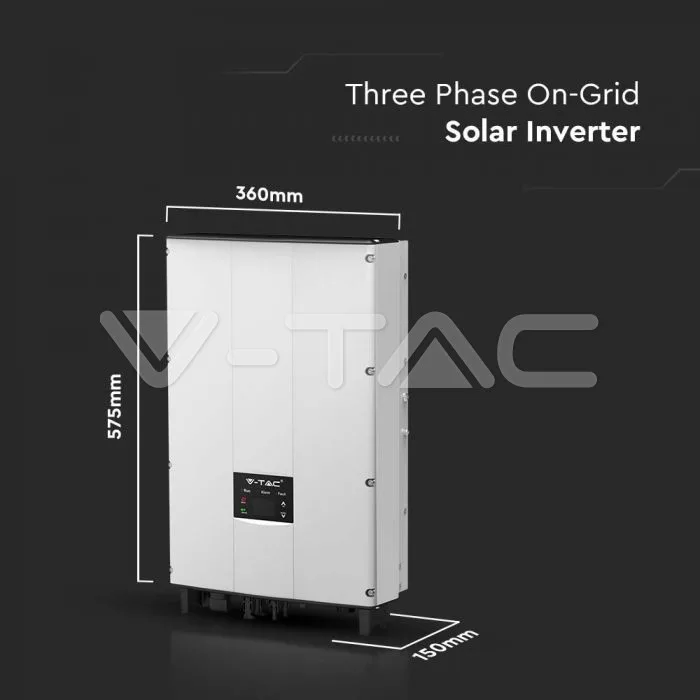

Size575x360x150

CERTIFICATIONS & WARRANTY1 item

Warranty10 years

PACKAGING1 item

Item Weight23kg

PRODUCT DATA4 items

Order code11373

Product codeVT-6610305

Release Date15.09.2022

BrandINVT

Documentos
