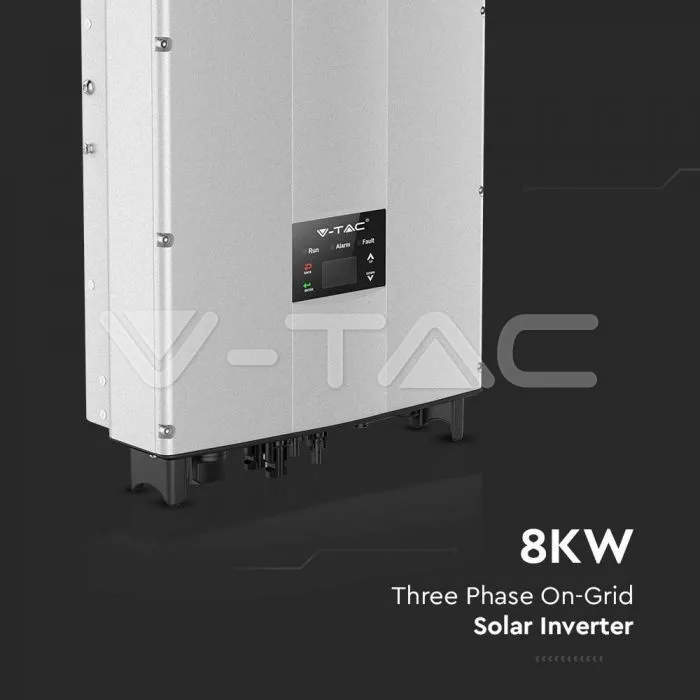

8kW On-Grid Solar Inverter LCD Display DC Switch Three Phase IP65 — view 4

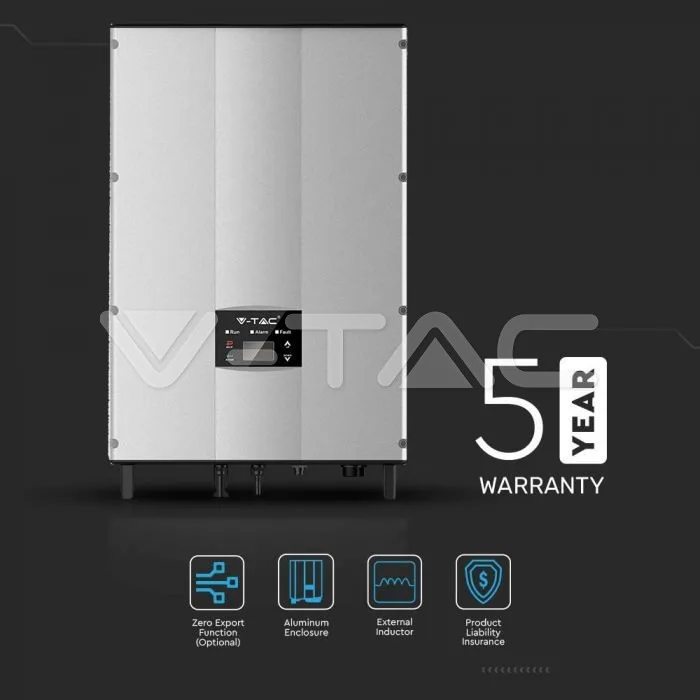

8kW On-Grid Solar Inverter LCD Display DC Switch Three Phase IP65 — view 5

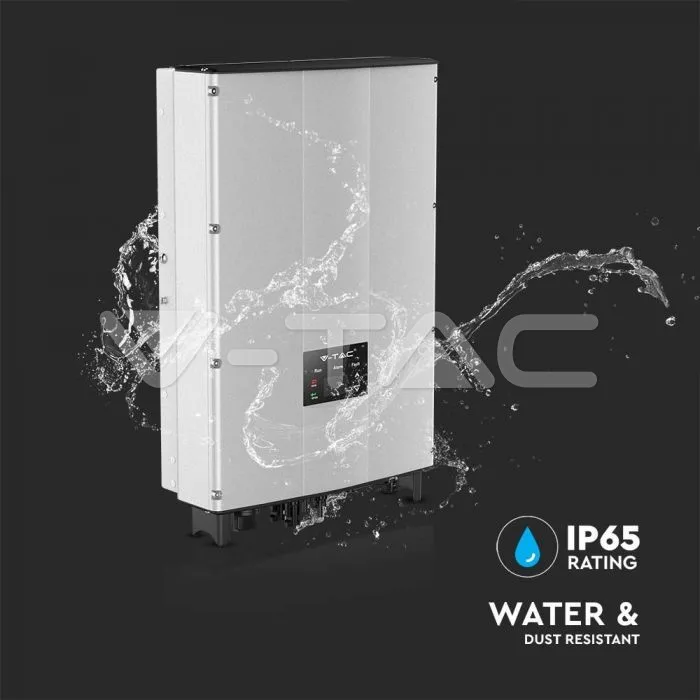

8kW On-Grid Solar Inverter LCD Display DC Switch Three Phase IP65 — view 6

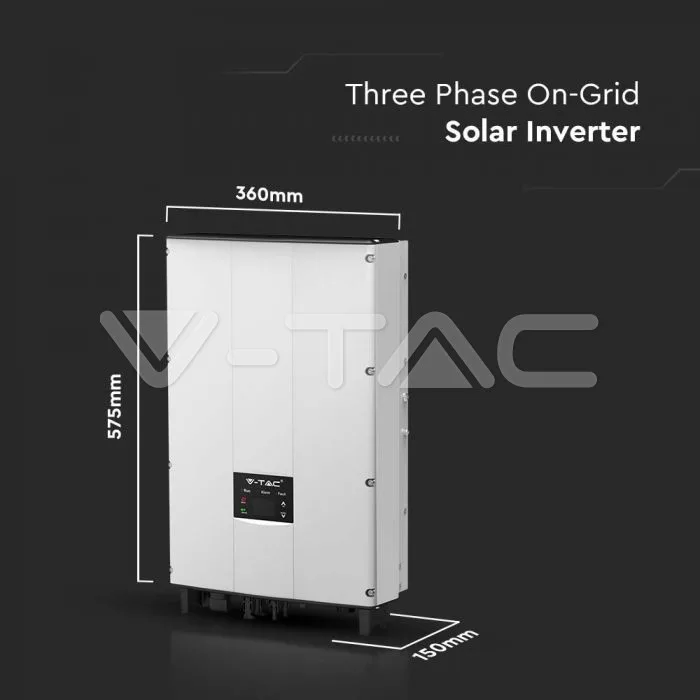

8kW On-Grid Solar Inverter LCD Display DC Switch Three Phase IP65 — view 7

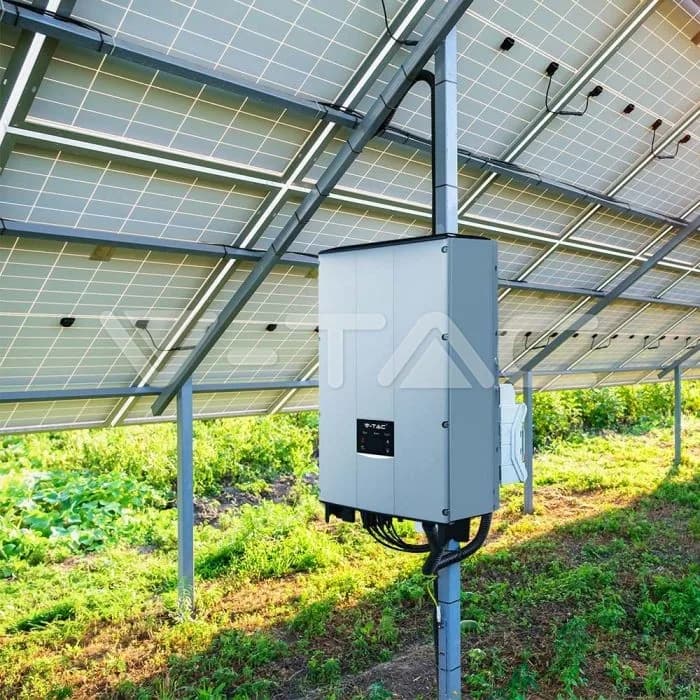

8kW On-Grid Solar Inverter LCD Display DC Switch Three Phase IP65 — view 8
V-TAC · VT-6608305
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

8kW On-Grid Solar Inverter LCD Display DC Switch Three Phase IP65

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty Conditions |
CERTIFICATION
EN 50549

Technical specification

Manual
LVD License
Declaration of Conformity
EN 50549
EMC License
Warranty Conditions |
General Information
Electrical Data
Current Max. DC Current per MPPT x Quantity of MPPT12x2 Max. Output Current: 12.6A
Wattage Max. Input Power9000W; Rated AC Power: 8000W;
Voltage Max. Input (DC)1000V; Start Voltage/Min. Operating (DC): 220/180V; MPPT Range (DC): 200-800/610V; Nominal output voltage (AC): 230/400V;220/380V, 3L+N+PE/3L+PE
Frequency 50Hz / 60Hz
Power Factor ≥0.99 (Rated Power)
Phase Three Phase
Capabilities
Working conditions -25°C to +60°C
IP Rating IP65
Dimensions
Size 575x360x150
Product Data
Order code 11372
Product code VT-6608305
Item Weight 23kg
Additional
Release Date 15.09.2022
Warranty 10 years
Brand INVT
