CATÁLOGO/INVERSORES HÍBRIDOS/REF 11371
5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase — view 1
5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase — view 2
5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase — view 3

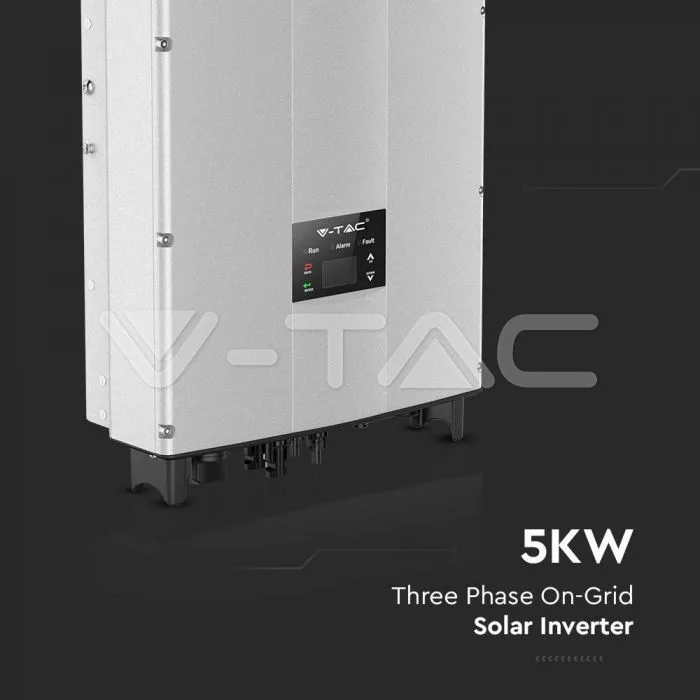

5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase — view 4

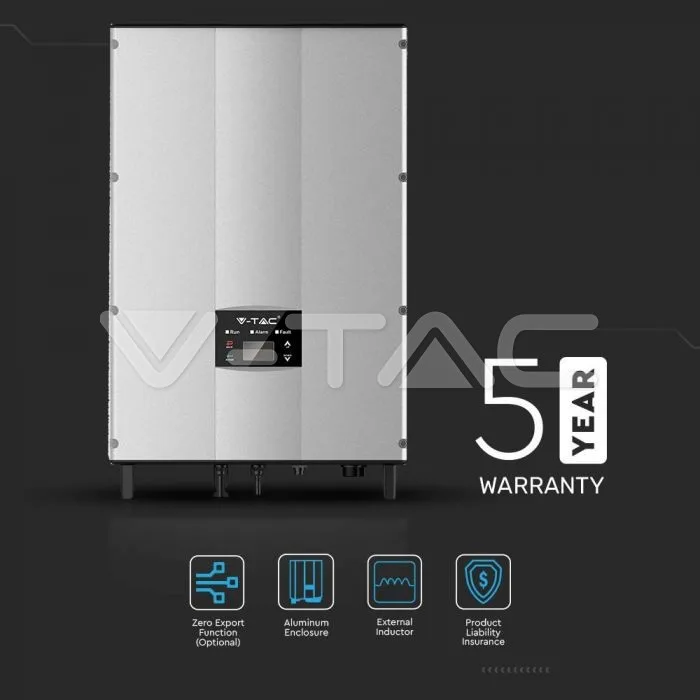

5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase — view 5
5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase — view 6
5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase — view 7

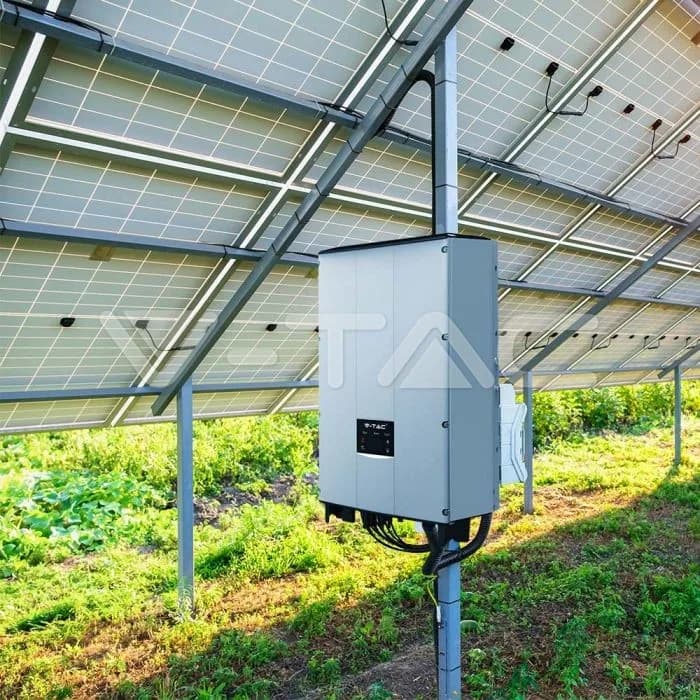

5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase — view 8
V-TAC · VT-6605305
● STOCK LIMITADO · ALMACÉN ENTREGA

5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase

5kW On-Grid Solar Inverter LCD Display DC Switch with three phase, IP65 protection and an operating range of -25°C to +60°C. 10 years; certification on file: LVD License, Declaration of Conformity and EMC License.

desde€488IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€488Card · PayPal · Klarna · Apple Pay
Pro€464Card · PayPal · Klarna · Apple Pay
Master€439Card · PayPal · Klarna · Apple Pay
Abre una cuenta para pedir
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 3
LVD LicenseDeclaration of ConformityEMC License

Especificaciones técnicas

ELECTRICAL DATA9 items
Max. DC Current per MPPT x Quantity of MPPT10x2 Max. Output Current: 8A
Max. Input Power5700W
Rated AC Power5000W
Start Voltage/Min. Operating (DC)220/180V
MPPT Range (DC)200-800/580V
Nominal output voltage (AC)230/400V
Frequency50Hz / 60Hz
Power Factor≥0.99 (Rated Power)
PhaseThree Phase
MECHANICAL & BUILD1 item
Max. Input (DC)900V
PHYSICAL DATA3 items
Working conditions-25°C to +60°C

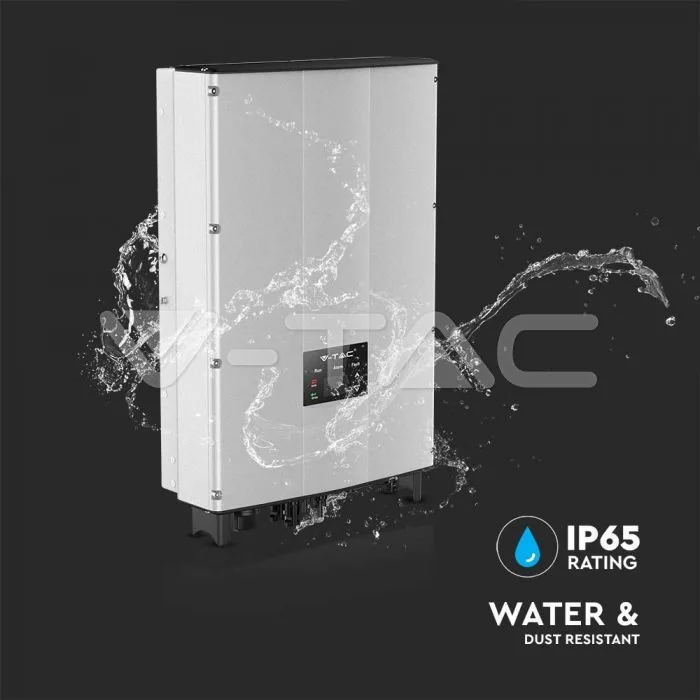

IP RatingIP65

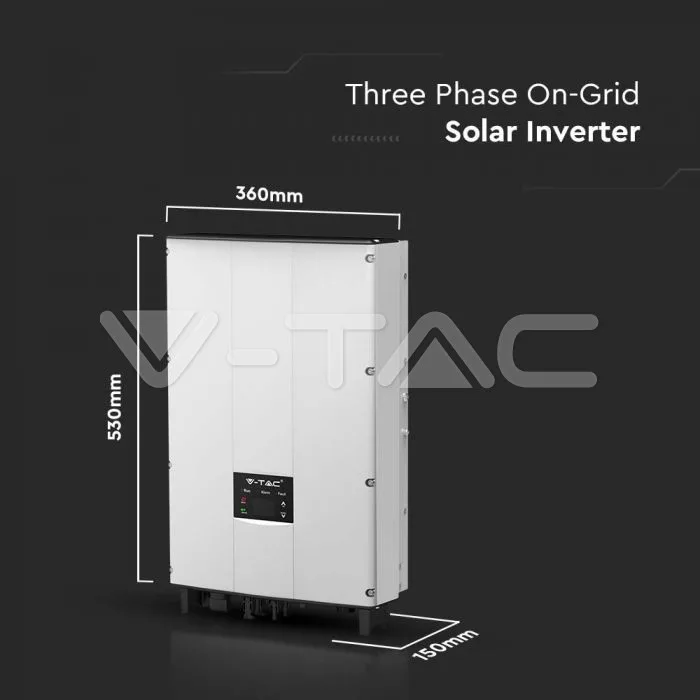

Size530x360x150
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight20kg
PRODUCT DATA4 items
Order code11371
Product codeVT-6605305
Release Date15.09.2022
BrandINVT
