3kW On-Grid Solar Inverter Single Phase IP65

Name: 3kW On-Grid Solar Inverter Single Phase IP65
Brand: V-TAC
SKU: 11369
Price: 282 EUR
Availability: OutOfStock

3kW On-Grid Solar Inverter Single Phase IP65 with an operating range of -25°C to +60°C (Derating above 45º). 10 years; certification on file: ЕМС Report, EMC License, LVD License and LVD Report.

desde€282IVA EXCL. · PRECIO DE TARIFA

NivelTu precioCondiciones

Trade€282Card · PayPal · Klarna · Apple Pay

Pro€268Card · PayPal · Klarna · Apple Pay

Master€254Card · PayPal · Klarna · Apple Pay

🔒 Desbloquea los precios profesionales

Abre una cuenta para pedir

GARANTÍA DEL FABRICANTE

10 years

Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.

CERTIFICACIÓN · 4

ЕМС ReportEMC LicenseLVD LicenseLVD Report

Especificaciones técnicas

ELECTRICAL DATA10 items

Max. Current per MPPT8A Max. Output Current: 14A

Max. Input Power3.6kW

Rated AC Power3kW

Start Voltage/Min. Operating (DC)120/100V

MPPT Range (DC)120V-550V

MPPT Rated (DC)360V

Rated Grid Voltage (AC)230V, L+N+PE

FrequencyRated Grid Frequency 50Hz / 60Hz

Power Factor≥0.99 (Rated Power)

PhaseSingle Phase

MECHANICAL & BUILD1 item

Max. Input (DC)600V

PHYSICAL DATA3 items

Working conditions-25°C to +60°C (Derating above 45º)

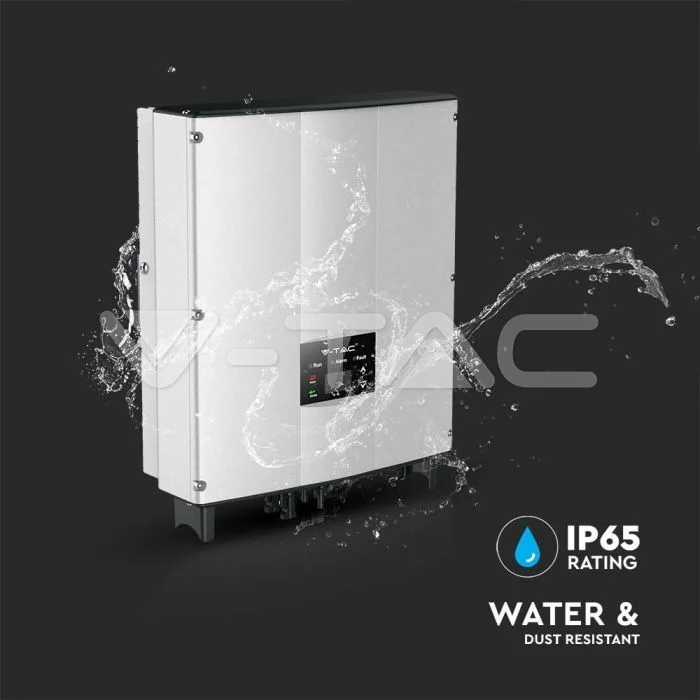

IP RatingIP65

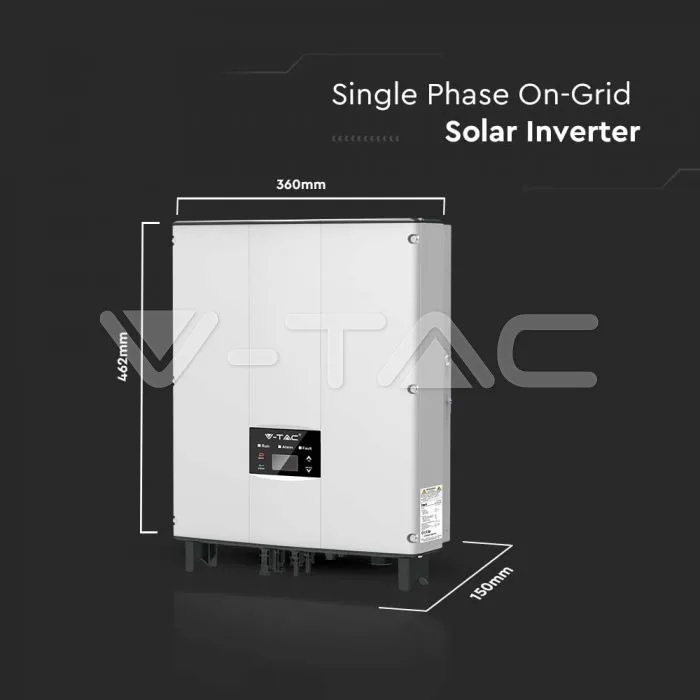

Size360 x 462 x 150 mm

CERTIFICATIONS & WARRANTY1 item

Warranty10 years

PACKAGING1 item

Item Weight18kg

PRODUCT DATA4 items

Order code11369

Product codeVT-6603105

Release Date15.09.2022

BrandINVT
