V-TAC · VT-545
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

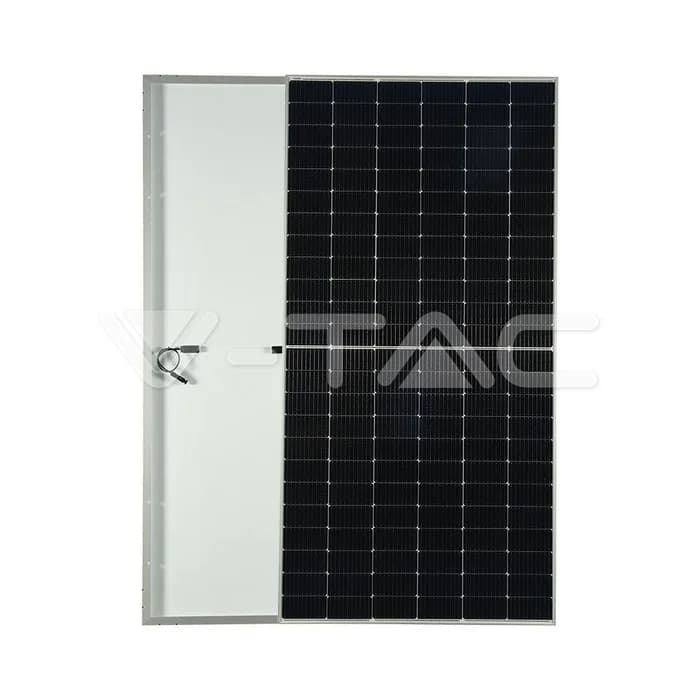

545W Mono Solar Panel

545W Mono Solar Panel with IP67/68 protection and an operating range of -40°C to +85°C. 12 years product warranty / 25 years linear warranty for productivity; certification on file: LVD License, TÜV Certificate, Declaration of Conformity and Fire Resistance.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
Solicitar precio y disponibilidad
GARANTÍA DEL FABRICANTE
12 years product warranty / 25 years linear warranty for productivity
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 5
LVD LicenseTÜV CertificateDeclaration of ConformityFire ResistanceHail Resistance

Especificaciones técnicas

ELECTRICAL DATA5 items
Maximum Power Current(Imp)13
Short Circuit Current(Isc)13.92±3%
Maximum Power Voltage(Vmp)41.93
Open Circuit Voltage(Voc)49.90±3%
Wattage545W
PHYSICAL DATA3 items
Working conditions-40°C to +85°C

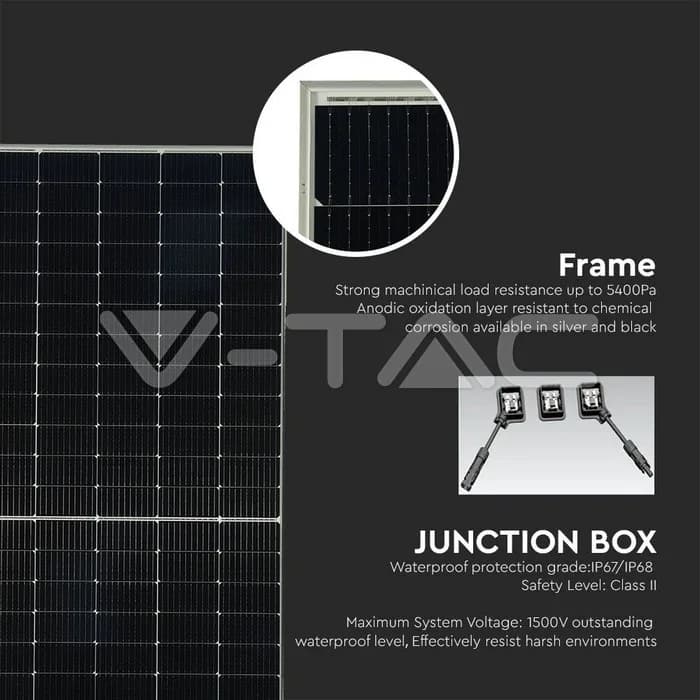

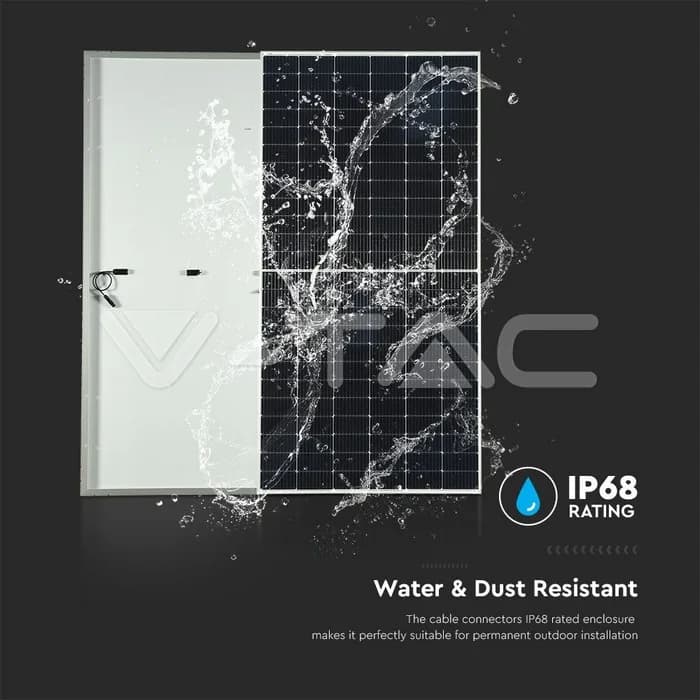

IP RatingIP67/68

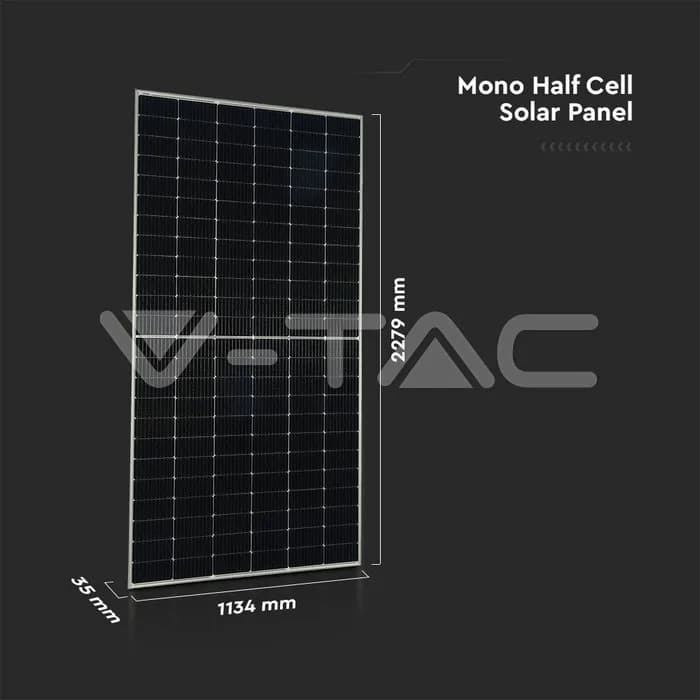

Size2279x1134x35mm
CERTIFICATIONS & WARRANTY3 items
CertificationCE, EMC, ROHS
Warranty12 years product warranty / 25 years linear warranty for productivity
TIER 1Yes
PACKAGING3 items
Item Weight30,04
Item Volume0,108532
EAN Code3800157682220
PRODUCT DATA4 items
Order code11354
Product codeVT-545
Release Date04.05.2022
BrandV-TAC
