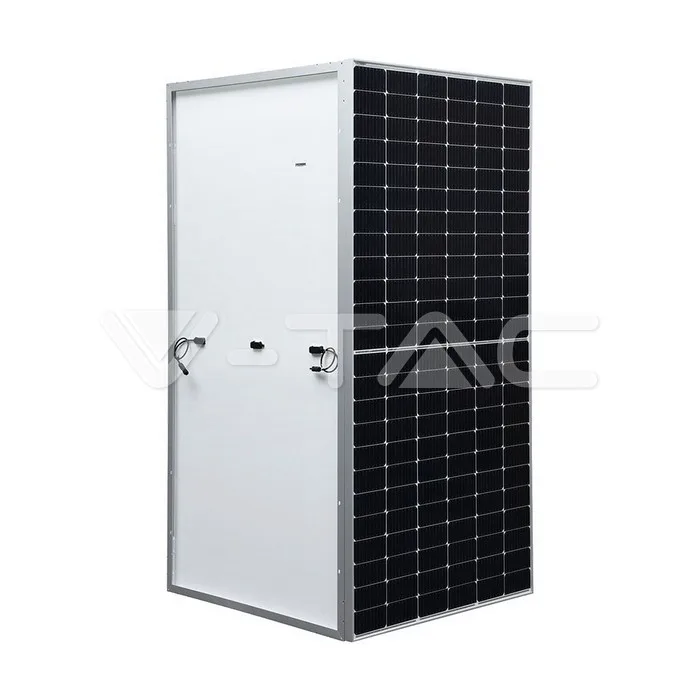

450W Mono Solar Panel — view 3

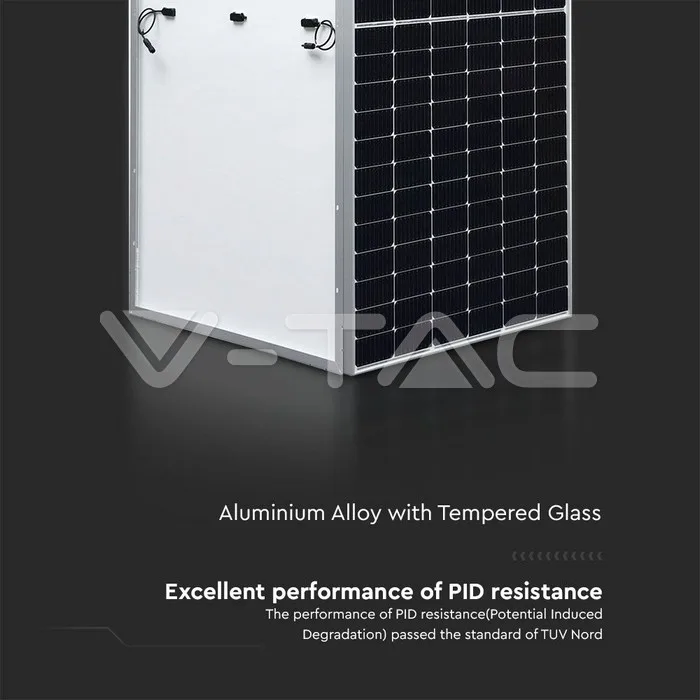

450W Mono Solar Panel — view 4

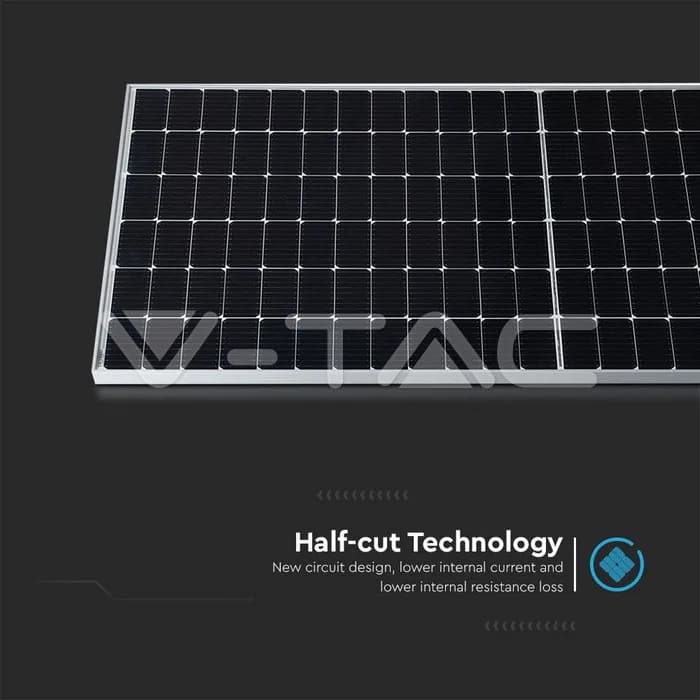

450W Mono Solar Panel — view 5
450W Mono Solar Panel — view 6

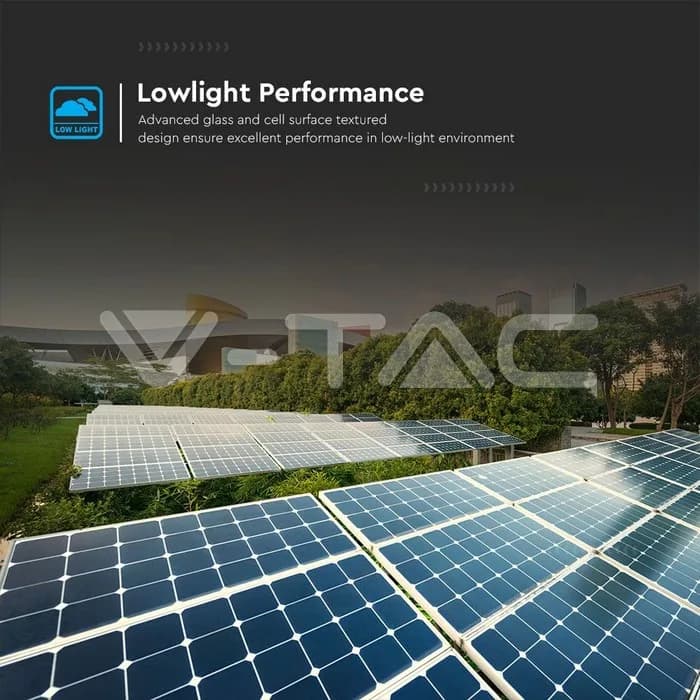

450W Mono Solar Panel — view 7

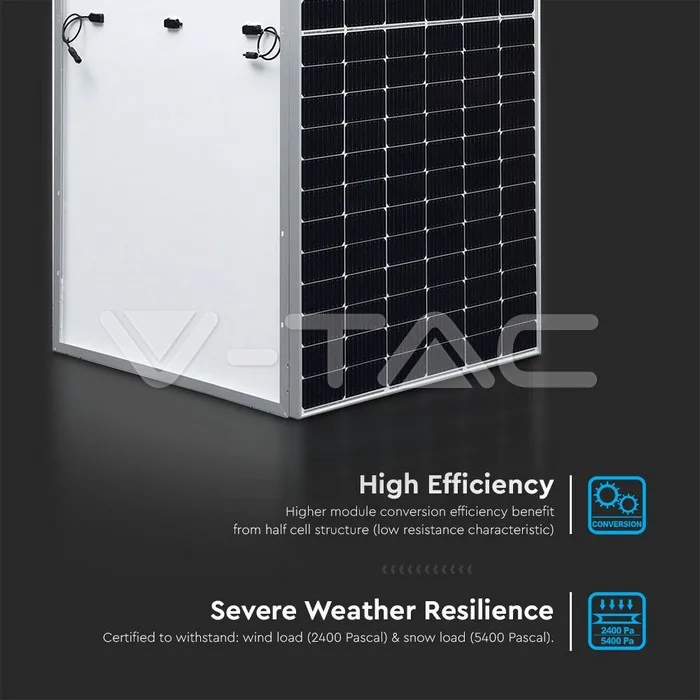

450W Mono Solar Panel — view 8
450W Mono Solar Panel — view 9
450W Mono Solar Panel — view 10
450W Mono Solar Panel — view 11

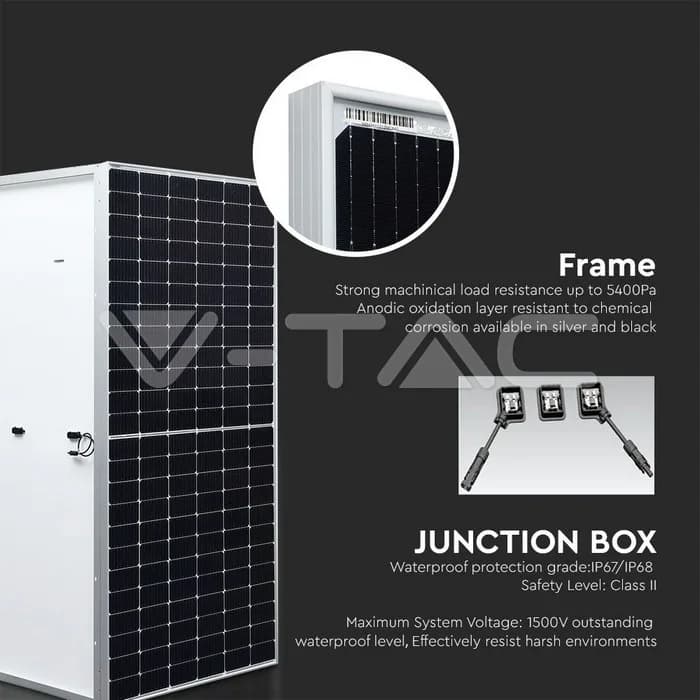

450W Mono Solar Panel — view 12
450W Mono Solar Panel — view 13

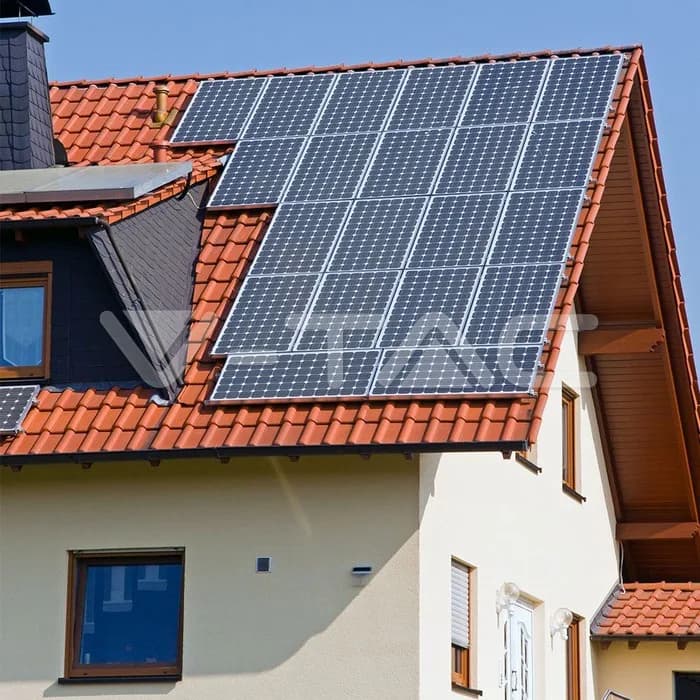

450W Mono Solar Panel — view 14

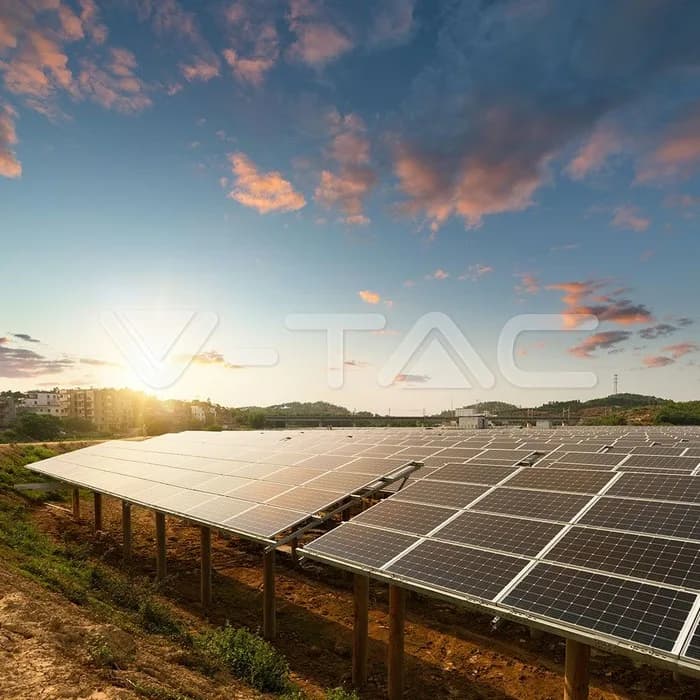

450W Mono Solar Panel — view 15
V-TAC · VT-450
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

450W Mono Solar Panel

450W Mono Solar Panel with aluminium alloy and tempered glass build, IP67/68 protection and an operating range of -40°C to +85°C. 12 years product warranty / 25 years linear warranty for productivity; certification on file: LVD License, TÜV Certificate, Declaration of Conformity and Fire Resistance.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
Solicitar precio y disponibilidad
GARANTÍA DEL FABRICANTE
12 years product warranty / 25 years linear warranty for productivity
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 5
LVD LicenseTÜV CertificateDeclaration of ConformityFire ResistanceHail Resistance

Especificaciones técnicas

ELECTRICAL DATA5 items
Maximum Power Current(Imp)10.85
Short Circuit Current(Isc)11.60±3%
Maximum Power Voltage(Vmp)41.50
Open Circuit Voltage(Voc)49.30±3%
Wattage450W
MECHANICAL & BUILD1 item
MaterialAluminium Alloy and Tempered Glass
PHYSICAL DATA3 items
Working conditions-40°C to +85°C

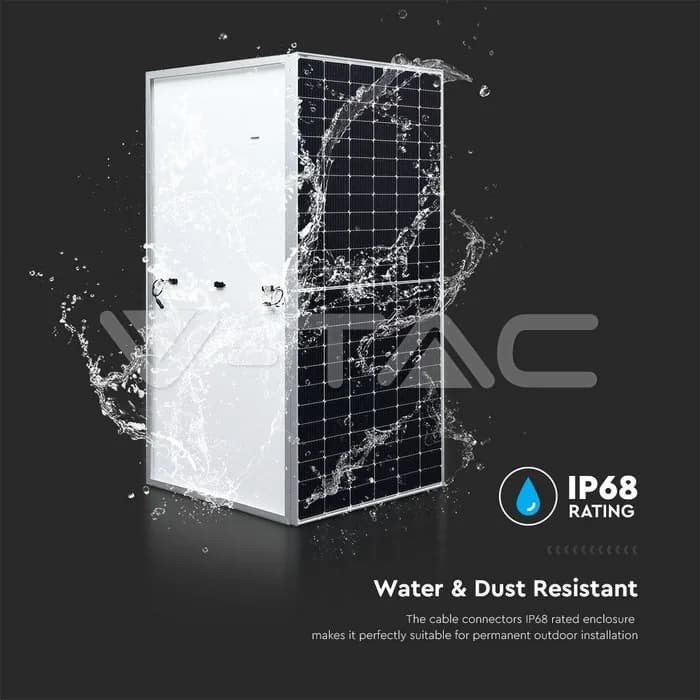

IP RatingIP67/68

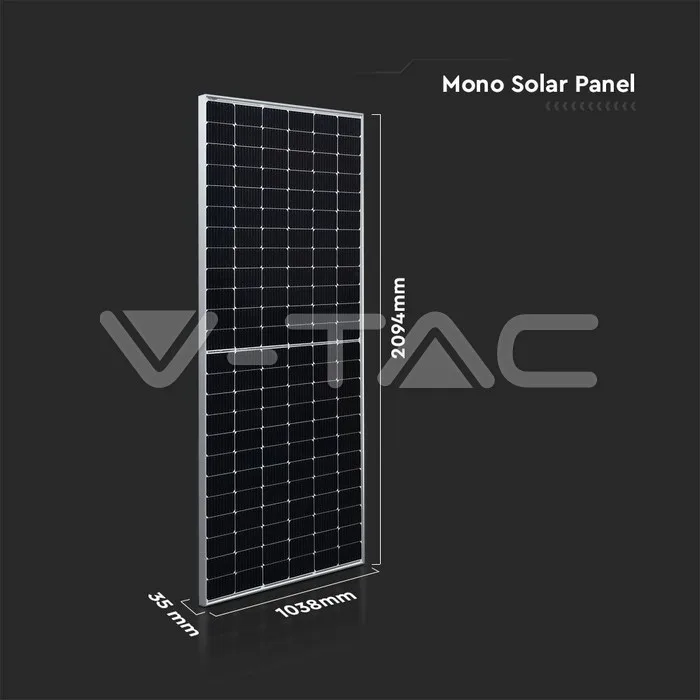

Size2094x1038x35mm
CERTIFICATIONS & WARRANTY3 items
CertificationCE, EMC, ROHS
Warranty12 years product warranty / 25 years linear warranty for productivity
TIER 1Yes
PACKAGING3 items
Item Weight24,93
Item Volume0,091294
EAN Code3800157682213
PRODUCT DATA4 items
Order code11353
Product codeVT-450
Release Date04.05.2022
BrandV-TAC
