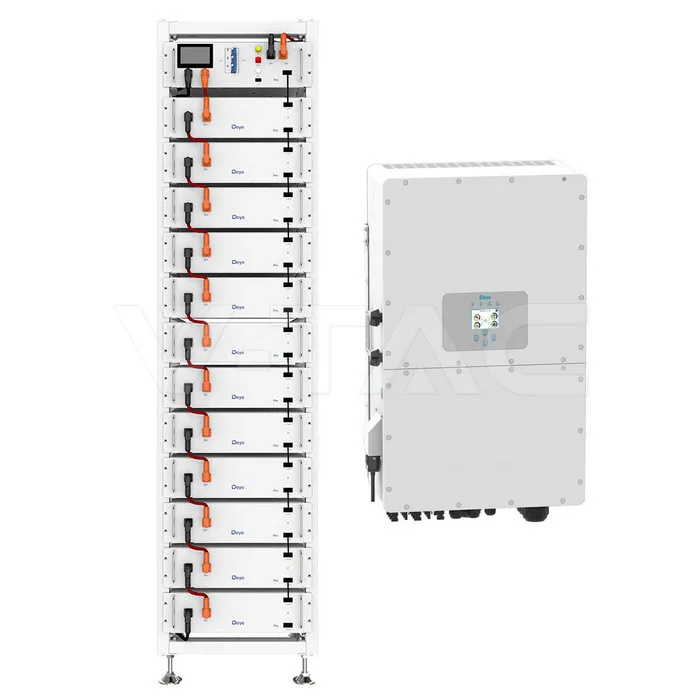

61.44kWh HV Battery System Deye IP20 + 50kW Deye Inverter — view 1
61.44kWh HV Battery System Deye IP20 + 50kW Deye Inverter — view 2
61.44kWh HV Battery System Deye IP20 + 50kW Deye Inverter — view 3
61.44kWh HV Battery System Deye IP20 + 50kW Deye Inverter — view 4
61.44kWh HV Battery System Deye IP20 + 50kW Deye Inverter — view 5
61.44kWh HV Battery System Deye IP20 + 50kW Deye Inverter — view 6
V-TAC · SKU 220221
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

61.44kWh HV Battery System Deye IP20 + 50kW Deye Inverter

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Preis / Verfügbarkeit auf Anfrage
AUF ANFRAGE · KEIN VERÖFFENTLICHTER LISTENPREIS
GARANTIE
Manufacturer warranty · V-TAC
ZERTIFIZIERUNG
CE · VDE Certificate

Technische Daten

* 12 pcs – 5.12kWh BOS-G-Pack 5.1 Battery SKU12346
* 1 pc - 50kW Hybrid Inverter Three PhaseSKU11861
* 1 pc – Battery Cluster Control Box SKU12347
Inverter PV Input Current36+36+36+36A
Battery Set Nominal Charge/Discharge Current100A
Battery Set Peak Charge/Discharge Current125A
Inverter Max. Input Power65000W
Inverter Rated Output Power50000W
Inverter Max. Output Power55000W
Battery Set61.44kWh (5.12kWh x 12)
Start Voltage180V
Rated Input Voltage600
Full-load DC Voltage Range450-850V
MPPT Voltage Range150-850V
Battery Set Nominal Voltage614.4V
Battery Set Operating Voltage528~700.8V
Frequency50/60Hz
Power Factor0.8 leading to 0.8 lagging
Battery Set Charge0 ~ 55°C / Discharge : -20 ~ 55°C
Battery System530 x 602 x 2219 mm
Battery System622 kg

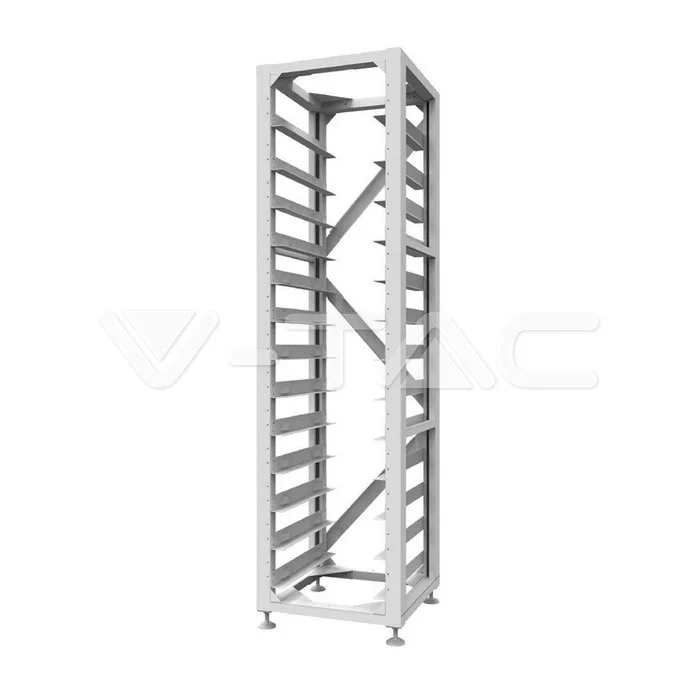

* 1 pc - 19inch Rack for Deye Set SKU11867
Inverter Max. PV ISC (A)55+55+55+55
Cells ChemistryLiFePO4
Inverter527 x 894 x 294 mm
Inverter100 kg
Order code220221
Release Date25.11.25
