KATALOG/SOLAR PV SETS/ART.-NR. 12356

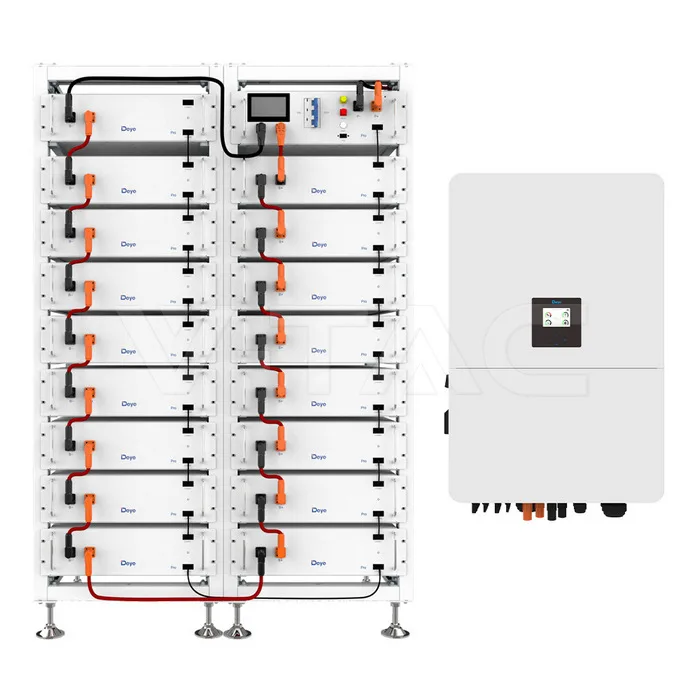

81.92kWh HV LiFePO4 Battery System Deye IP20 BOS-G — view 1
V-TAC · SKU 12356
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

81.92kWh HV LiFePO4 Battery System Deye IP20 BOS-G

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Preis / Verfügbarkeit auf Anfrage
AUF ANFRAGE · KEIN VERÖFFENTLICHTER LISTENPREIS
GARANTIE
10 years
ZERTIFIZIERUNG
CE · VDE Certificate

Technische Daten

* 16 pcs - 5.12kWh BOS-G-Pack 5.1 Battery SKU12346
* 1 pcs - Battery Cluster Control Box SKU12347
Max. PV Access Power160000W
Max. PV Input Power128000W
Rated AC Input/Output Active Power80000W
Battery81.92kWh
Max. Operating PV Input Current36+36+36+36+36+36A
Max. Input Short-Circuit Current54+54+54+54+54+54A
Rated AC Input/Output Current121.3/115.9A
Max. AC Input/Output Current133.4/127.6A
Nominal Charge/Discharge Current100A
Peak Charge/Discharge Current125A
Max. PV Input Voltage1000V
Start-up Voltage180V
MPPT Voltage Range150-850V
Rated PV Input Voltage650V
Battery System Nominal Voltage819.2V
Frequency50/60Hz
Power Factor0.8 leading to 0.8 lagging
Battery System1060 x 602 x 1629 mm
* 1 pcs - Deye Inverter 80kW SKU12322
* 2 pcs - Rack for Deye Set SKU12301
Max. Continuous AC Passthrough200A
Charge0 ~ 55 / Discharge : -20 ~ 55
Cells ChemistryLiFePO4
Inverter606 x 927 x 314 mm
Warranty10 years
Order code12356
Release Date18.07.25
ManufacturerV-TAC
