KATALOG/SOLAR PV SETS/ART.-NR. 12317

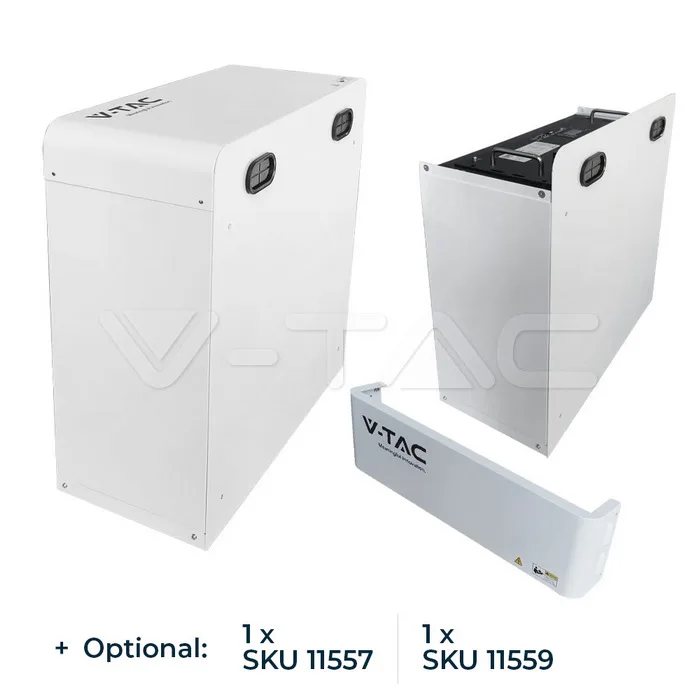

9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter — view 1

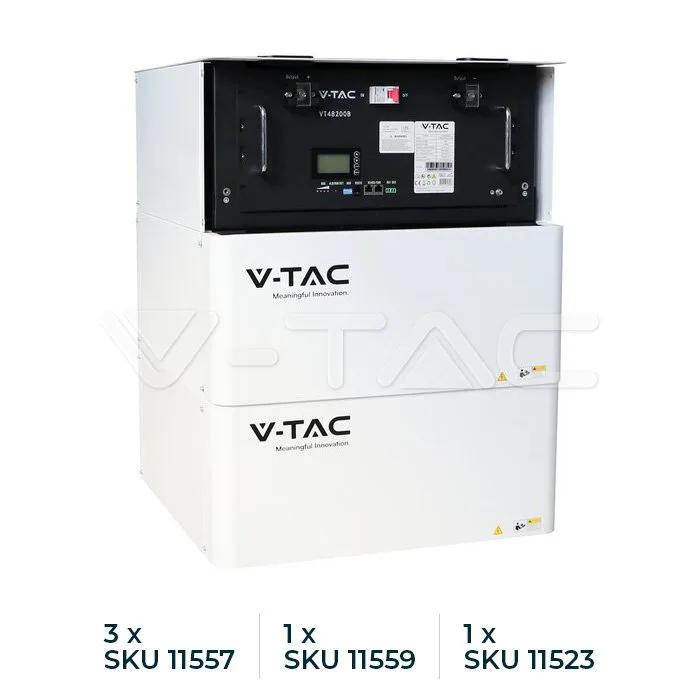

9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter — view 2

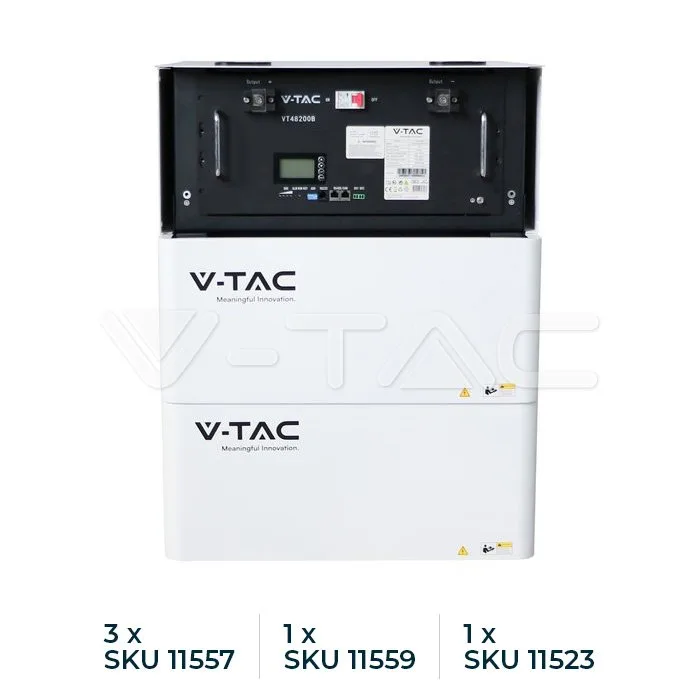

9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter — view 3

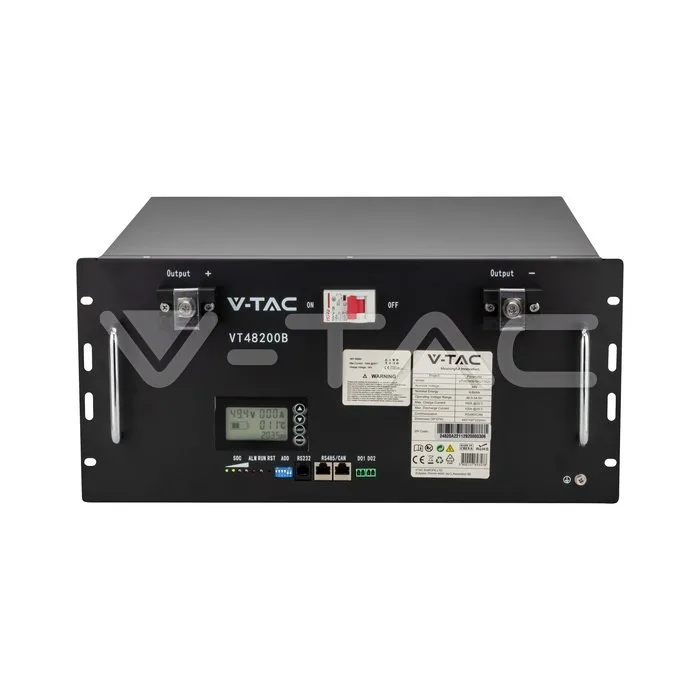

9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter — view 4

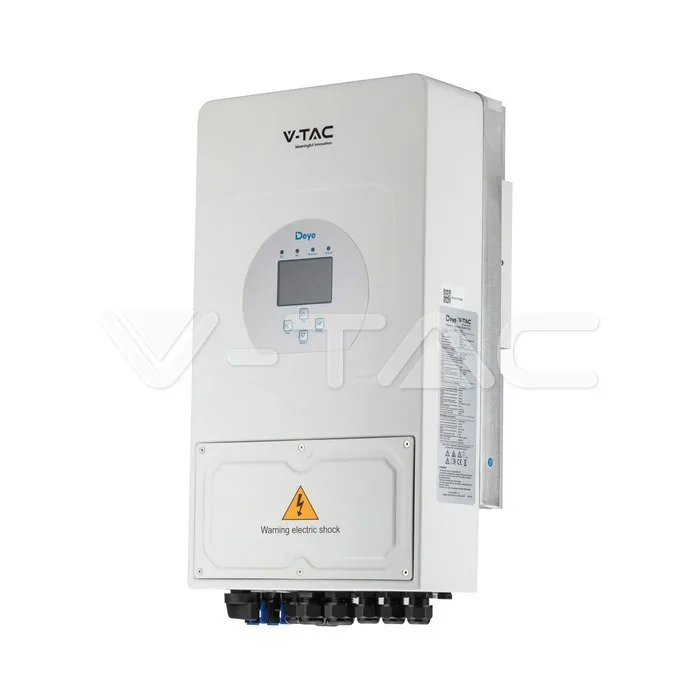

9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter — view 5
9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter — view 6

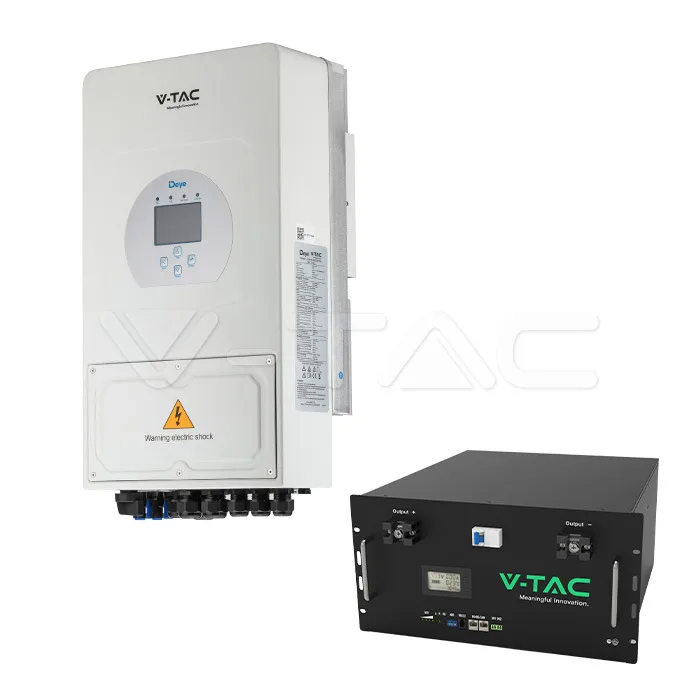

9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter — view 7
V-TAC · SKU 12317
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter

9.6kWh LiFePO4 Battery 11523 + 6kW Deye Inverter with an operating range of 40~60°C, >45°C derating. 10 Years.

Preis / Verfügbarkeit auf Anfrage
AUF ANFRAGE · KEIN VERÖFFENTLICHTER LISTENPREIS
GARANTIE
10 Years
ZERTIFIZIERUNG
Per datasheet

Technische Daten

Max. DC Input Power7800W
Rated AC Output and UPS Power6000W
Max. AC Output Power6600W
Battery9.60kWh
AC Output Rated Current27.3/26.1A
Max. AC Current27.3/26.1A
Rated PV Input Voltage370 (125~500)
Start-up Voltage125V
MPPT Voltage Range150-425V
Full Load DC Voltage Range300-425V
Battery48V
Frequency50/60Hz
Power Factor0.8 leading to 0.8 lagging
+ OptionalSKU 11557 and SKU 11559
Max. Continuous AC Passthrough40A
Cells ChemistryLiFePO4
Inverter330W x 580H x232D
Inverter27.400 kg Battery 77 kg
Working conditions40~60°C, >45°C derating
Warranty10 Years
Order code12317
ManufacturerV-TAC
