V-TAC · SKU 12284
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

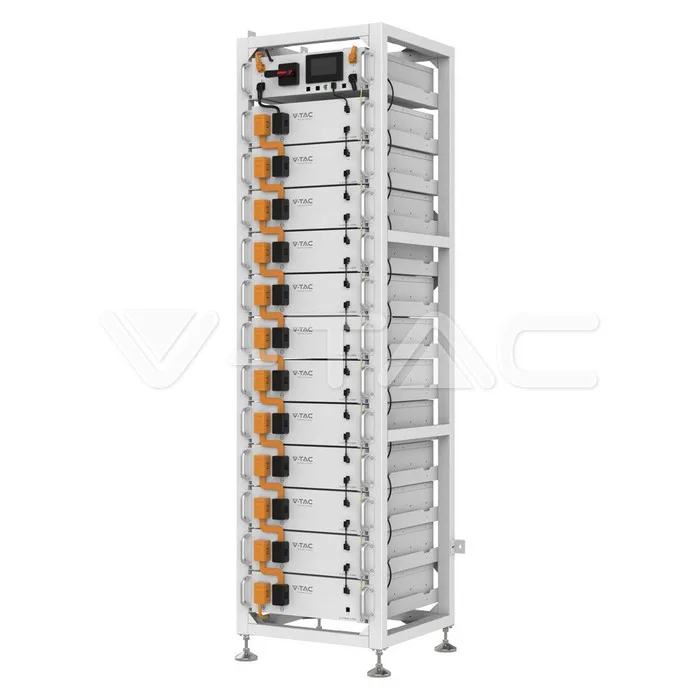

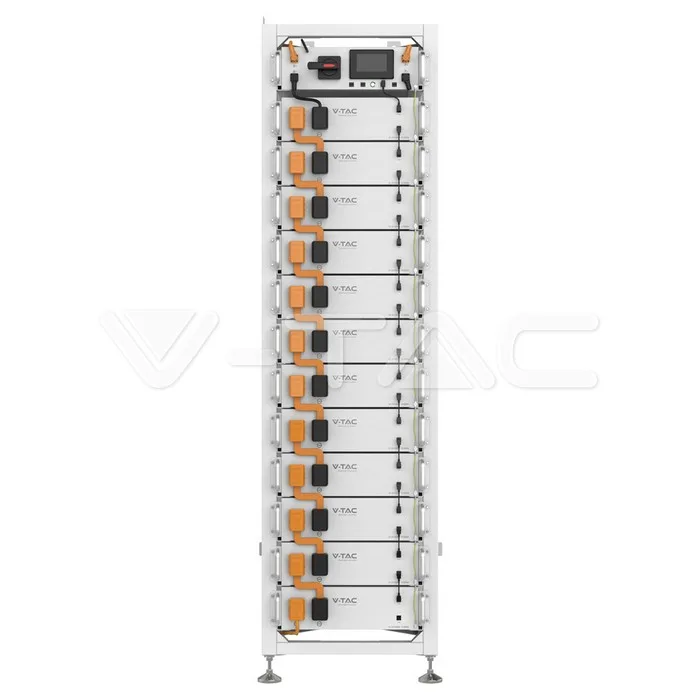

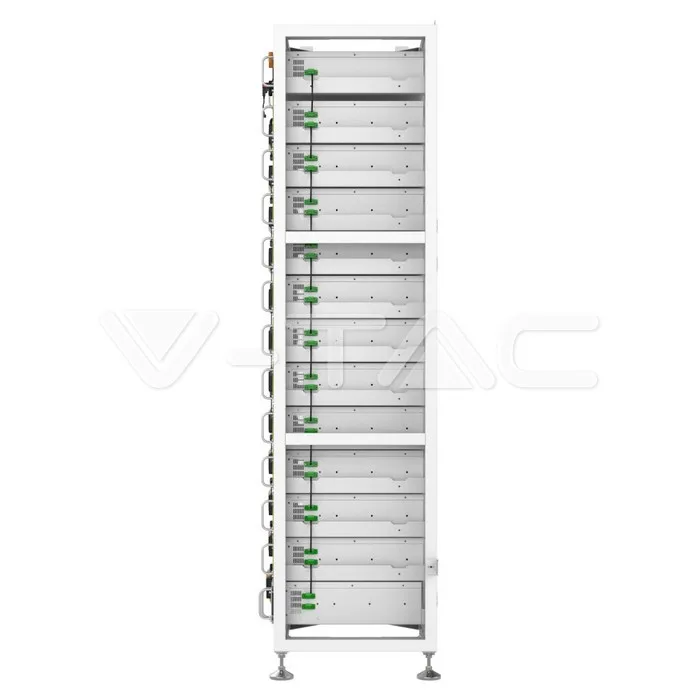

60kWh HV Battery System Oliter IP20 + 50kW Deye Inverter

60kWh HV LiFePO4 Battery System Oliter IP20 with 100Ah LFP (LiFePO4) capacity and 61.44kWh (5.12 kWh x 12). 10 years; certification on file: CE.

ab€18,760EXKL. UST. · LISTENPREIS
StufeIhr PreisZahlungsziel
Trade€18,760Card · PayPal · Klarna · Apple Pay
Pro€17,822Card · PayPal · Klarna · Apple Pay
Master€16,884Card · PayPal · Klarna · Apple Pay
GARANTIE
10 years
ZERTIFIZIERUNG
CE

Technische Daten

* 12 pcs - 5.12kWh Lithium Battery HV SKU12239
* 1 pc - 50kW Hybrid Inverter Three Phase SKU11861

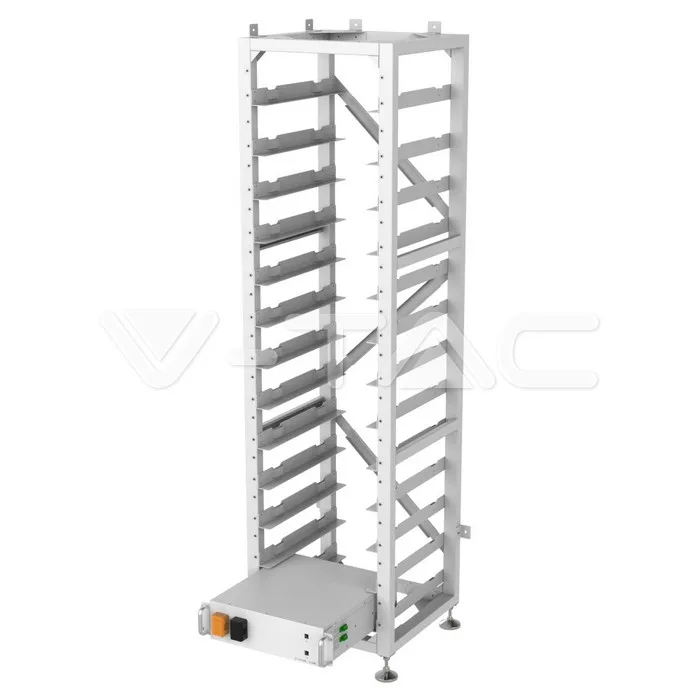

* 1 pcs - High Voltage Battery Cluster Control Box SKU12238

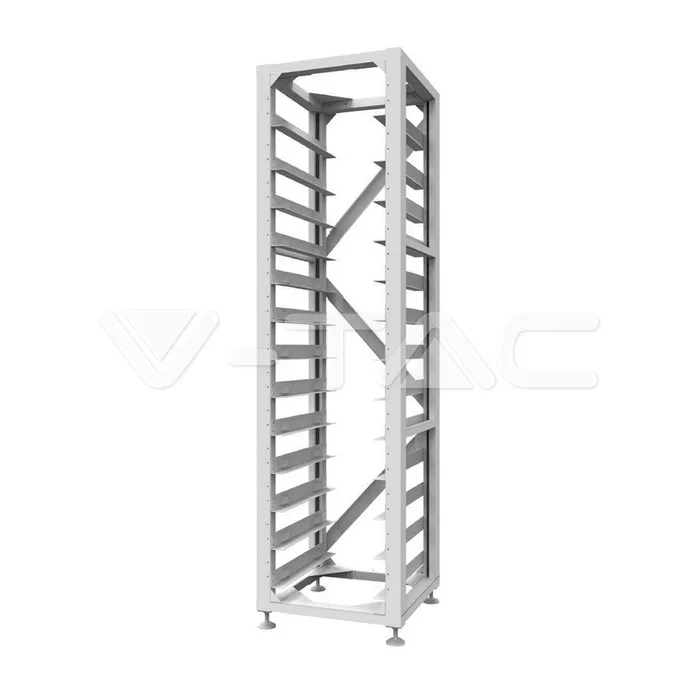

* 1 pcs - Rack for 12 Batteries and 1 BMS SKU12218
* 1 pcs - 5 Meter Positive Power Cable 4AWG SKU12219
* 1 pcs - 5 Meter Negative Power Cable 4AWG SKU12220.
Charge/Discharge Current50A
Wattage61.44kWh (5.12 kWh x 12)
Nominal Voltage614.4V
Operating Voltage556.8~681.6V
Battery Capacity100Ah LFP (LiFePO4)
Battery Set580 x 584.5 x 2162 mm
Battery Set632.5 kg
Charge Temperature0 ~45℃
Discharge Temperature-10 ~55℃
Storage Temperature0~35℃
Cells ChemistryLiFePO4
Inverter527x894x294 mm
Inverter100 kg
On/Off cycles25±2°C,0.5C/0.5C,EOL70%≥6000
Warranty10 years
Order code12284
Release Date22.10.2024
ManufacturerV-TAC
