KATALOG/MOUNTING & ACCESSORIES/ART.-NR. 11414

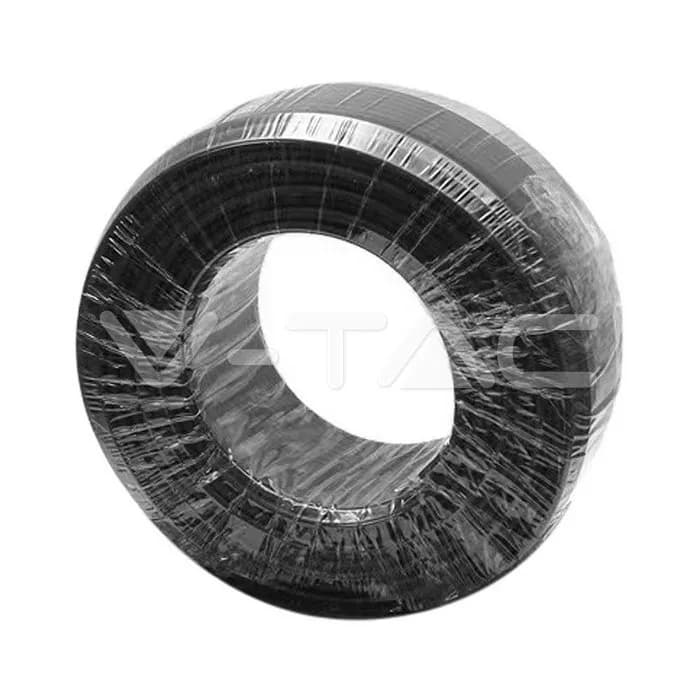

PV Cable 4SQ Black For Solar Panel 100meters — view 1
V-TAC · SKU 11414
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

PV Cable 4SQ Black For Solar Panel 100meters

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

ab€79EXKL. UST. · LISTENPREIS
StufeIhr PreisZahlungsziel
Trade€79Card · PayPal · Klarna · Apple Pay
Pro€75Card · PayPal · Klarna · Apple Pay
Master€71Card · PayPal · Klarna · Apple Pay
GARANTIE
Manufacturer warranty · V-TAC
ZERTIFIZIERUNG
TÜV Certificate

Technische Daten

Current carrying capacity AT 30℃57A
Voltage Withstand6500 VAC
* ConductorStranded tinned copper
* Stranding56/0.285±0.01mm
* Diameter2.4mm
* Primary InsulationXLPE
* Minimum Average Thickness0.7mm
* ColorBlack
* Secondary InsulationXLPE
* Outer Diameter5.5±0.15mm
EN 50618/IEC 62930AC: 1000V
DCMax.1500V
Ambient Temperature-40°C up to 90°C
At 20℃ Insulation Resistance≥ 709 MΩ.km
Spark test10000 VAC
Conductor Resistance AT 20℃≤5.09 Ω/km
* Size4mm²
Item Weight6,2
Item Volume0,008019
Items per box4
EAN Code3800157690935
Items per pack100m.
Order code11414
Release Date12.10.2022
ManufacturerV-TAC
